When it comes to precise positioning in 2026, choosing the right linear stage can be vital for your projects. You’ll find that the market is evolving with models boasting exceptional accuracy and durable designs. With options tailored for various applications, it’s important to understand what features will best meet your needs. Let’s explore the top contenders and what makes them stand out in this competitive landscape.

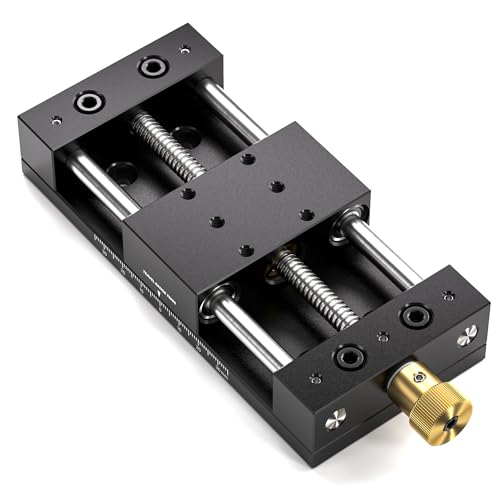

Manual Linear Stage Sliding Table with Ruler and Base
The Manual Linear Stage Sliding Table with Ruler and Base is ideal for mechanical engineers and hobbyists alike who need precise positioning in their projects. With a stroke of 0-75mm and a load capacity of up to 10kg, it provides reliable translation for various applications. The aluminum alloy body and stainless steel components guarantee durability, while the anti-backlash nut and brass adjustment knob enhance precision. You can easily fine-tune displacement in automation equipment or perform maintenance tasks. This table’s laser marking and linear rail guide allow for seamless adjustments, making it a valuable tool for achieving accurate positioning in your work.
Best For: Mechanical engineers and hobbyists seeking precise positioning and fine-tuning in their projects.
Pros:
- Durable aluminum alloy body with stainless steel components ensures long-lasting use.
- Anti-backlash nut and precision brass adjustment knob enhance the accuracy of movements.
- Versatile applications in mechanical engineering, automation equipment, and equipment maintenance.
Cons:
- Limited stroke length of 75mm may not be sufficient for larger projects.
- Manual operation may not be suitable for high-speed applications.
- Load capacity of 10kg may restrict use with heavier equipment or materials.
Keenso SEMY100-AC Micrometer Manual Precision Linear Stage (100x100x40mm)
Engineered for precision and stability, the Keenso SEMY100-AC Micrometer Manual Precision Linear Stage is an excellent choice for researchers and engineers who require accurate positioning in their projects. Measuring 100x100x40mm, this manual translation stage offers smooth movement, making it ideal for precise laboratory inspections and mechanical equipment positioning. Its high-strength aluminum alloy construction, coupled with a black anodized finish, guarantees durability in demanding environments. With precision machined components, you’ll experience enhanced usability for tasks like optical waveguide alignment. Plus, Keenso’s commitment to customer satisfaction means you’ll receive professional support whenever needed. This stage is built to last and perform.
Best For: Researchers and engineers seeking precise positioning for laboratory inspections and mechanical equipment.
Pros:
- Smooth and reliable movement enhances usability for various applications.
- High-strength aluminum alloy construction ensures durability in demanding environments.
- Professional customer support available for issue resolution and assistance.
Cons:
- Manual operation may require more effort compared to automated stages.
- Limited size (100x100x40mm) may not accommodate larger projects.
- Potential learning curve for users unfamiliar with manual precision stages.
X Axis Manual Precision Linear Stage 80x80mm
For those seeking unparalleled accuracy in their projects, the X Axis Manual Precision Linear Stage, measuring 80x80mm, stands out with its micrometer fine-tuning capability. Constructed from durable aluminum alloy and featuring a sleek black anodized surface, this stage guarantees stable performance. Its single X design optimizes linear guide sliding, allowing for precise positioning in various applications, including production machinery and optical experiments. With overall dimensions of 165 × 92 × 24.5mm, it fits easily into tight spaces. Experience the advantages of fine-tuning displacement and high precision movement, making it an essential tool for your precision needs.
Best For: Professionals and researchers requiring high precision in linear movement for applications in production machinery and optical experiments.
Pros:
- Fine-tuning capability allows for precise adjustments and accurate positioning.
- Durable aluminum alloy construction ensures long-lasting performance and stability.
- Compact design fits easily into tight spaces, making it versatile for various setups.
Cons:
- Manual operation may not be suitable for applications requiring automated movement.
- Limited to X-axis movement, which may constrain certain experimental setups.
- Potentially higher cost compared to simpler linear stages without fine-tuning features.
XYZ 3 Axis Linear Stage for Optical Laboratory
Looking for a reliable solution for precise measurements in your optical laboratory? The XYZ 3 Axis Linear Stage is perfect for you. With a compact 60 x 60 mm sliding table, it allows movement along X, Y, and Z axes with a travel range of ±6.5 mm and 10 mm, respectively. Enjoy impressive accuracy of 0.03 mm and a minimum scale of 0.01 mm. Made from durable aluminum alloy, its black anodized surface guarantees stability and rust prevention. Ideal for optical experiments, it offers smooth manual sliding and enhanced load-bearing capacity for fine-tuning and precise positioning tasks.
Best For: Researchers and technicians in optical laboratories seeking precise measurement solutions.
Pros:
- High Accuracy: Achieves precision with an accuracy of 0.03 mm and a minimum scale of 0.01 mm.
- Durable Construction: Made from aluminum alloy with a rust-resistant anodized surface, ensuring longevity and stability.
- Smooth Operation: Features manual sliding for enhanced control and smooth movement during experiments.
Cons:
- Limited Travel Range: The travel range of ±6.5 mm in the XY axes may not accommodate larger experimental setups.
- Manual Operation: Requires manual adjustment which may not be suitable for automated systems.
- Weight Limitations: While designed for load-bearing, specific weight limits are not detailed, potentially affecting heavier applications.
X Micrometer Manual Fine-Tuning Cross Roller Precision Linear Stage (60 * 60mm)
The X Micrometer Manual Fine-Tuning Cross Roller Precision Linear Stage (60x60mm) stands out as an exceptional choice for professionals in fields requiring meticulous positioning, such as optical experiments and precision machinery. Constructed from high-strength aluminum alloy, this stage guarantees durability with a black anodized finish that enhances stability. Thanks to its micron-level processing technology, you’ll experience stable performance tailored for precise linear translation and fine-tuning applications. Whether you’re working with production machinery, testing equipment, or conducting optical measurements, this stage is designed for accurate positioning. Plus, with responsive customer support, you’ll always have assistance when needed.
Best For: Professionals in fields requiring meticulous positioning, such as optical experiments and precision machinery.
Pros:
- High durability due to construction from high-strength aluminum alloy.
- Stable performance facilitated by micron-level processing technology.
- Versatile applications suitable for production machinery, testing equipment, and optical measurements.
Cons:
- Limited size (60x60mm) may not fit all applications.
- Manual operation may require more effort compared to automated systems.
- Potentially higher cost compared to simpler linear stages.
Precision XYZR 4 Axis Manual Linear Positioning Stage
Engineers and researchers seeking exceptional accuracy in their projects will find the Precision XYZR 4 Axis Manual Linear Positioning Stage to be an invaluable tool. With a compact 60x60mm table size, this lightweight aluminum stage integrates seamlessly into various devices. It offers movement in the X, Y, Z, and R axes, providing ±6.5mm travel in XY, ±10mm in Z, and 360° rotation with fine tuning. Its robust load capacity of 29.4N guarantees reliability. The cross roller guide enhances precision and smoothness, making it ideal for applications that demand meticulous positioning and tuning. Elevate your projects with this precision stage.
Best For: Engineers and researchers seeking precise positioning and tuning capabilities in their projects.
Pros:
- High precision due to cross roller guide system for smooth movement.
- Compact size (60x60mm) allows easy integration into various devices.
- Robust load capacity of 29.4N (3kgf) ensures reliability in diverse applications.
Cons:
- Manual operation may not be suitable for applications requiring automatic adjustments.
- Limited travel range in the XY and Z axes compared to some automated stages.
- Lightweight aluminum may be less durable than heavier materials in demanding environments.
Keenso SEMY60-AC Micrometer Manual Precision Linear Translation Stage
For those seeking exceptional accuracy in their positioning tasks, the Keenso SEMY60-AC Micrometer Manual Precision Linear Translation Stage stands out with its robust aluminum alloy construction and precise XY sliding track. Measuring 60x60x40mm, this manual stage is perfect for laboratory precision inspection and mechanical equipment positioning. Its high strength and wear resistance guarantee longevity, while the black anodized surface adds a premium touch. The trimming bearing sliding table enhances precision during machining, making it ideal for fiber coupling and optical waveguide alignment. Plus, Keenso provides excellent customer support, assuring you’re satisfied with your purchase.
Best For: The Keenso SEMY60-AC Micrometer Manual Precision Linear Translation Stage is best for professionals in laboratories and mechanical fields requiring precise positioning and movement.
Pros:
- High strength and wear resistance due to its robust aluminum alloy construction.
- Precision machining enabled by the trimming bearing sliding table, enhancing accuracy in tasks like fiber coupling.
- Excellent customer support with professional aftermarket replacement services for customer satisfaction.
Cons:
- Manual operation may require more effort and time compared to automated stages.
- Limited size (60x60x40mm) may not accommodate larger applications.
- Potential learning curve for users unfamiliar with manual linear translation stages.
Generic XYZ 3 Axis Manual Linear Stage Platform
When you need precise control over positioning in your projects, the Generic XYZ 3 Axis Manual Linear Stage Platform stands out as an excellent choice. This compact stage, measuring 2.36” x 2.36”, offers a load capacity of 24.5N (3 kgf) and allows for high precision linear motion in three degrees of freedom. With a travel range of ±6.5mm on the XY axis and 10mm on the Z axis, you’ll find it perfect for sample positioning and objective focusing. Constructed from durable aluminum alloy, it’s easy to install with M4 socket head cap screws, ensuring reliable performance in any application.
Best For: Researchers and engineers requiring precise positioning for experiments and observations in laboratory settings.
Pros:
- High Precision: Offers accurate linear motion in three degrees of freedom for detailed positioning.
- Compact Size: The small dimensions make it suitable for tight spaces in various setups.
- Durable Material: Constructed from aluminum alloy for longevity and reliability.
Cons:
- Manual Operation: Requires manual adjustments, which may be less convenient for automated processes.
- Limited Load Capacity: Can only support a maximum of 24.5N, which may not suffice for heavier samples.
- Installation Requirements: Needs M4 socket head cap screws for installation, which may not be included.
Dovetail Linear Stage Goniometer Sliding Stage (HXVA60)
Precision enthusiasts seeking reliable and accurate positioning will find the Dovetail Linear Stage Goniometer Sliding Stage (HXVA60) an invaluable tool. This manual goniometer slide features a 60x60mm precision translation stage, ensuring straightness of just 0.03mm for exceptional accuracy in optical equipment and measurement devices. Built from high-quality materials with an anodized finish, it withstands rigorous use while supporting high loads. Its integrated drive mechanism allows smooth movement over a 20mm stroke. Ideal for various applications, including optical systems and semiconductor manufacturing, its compact design and user-friendly manual gear wheel make precise adjustments effortless and safe.
Best For: Precision enthusiasts and professionals working in optical systems, semiconductor manufacturing, and testing applications who require reliable and accurate positioning.
Pros:
- High accuracy with a straightness of 0.03mm, making it ideal for precision tasks.
- Durable construction from high-quality materials ensures longevity and resilience under rigorous use.
- User-friendly design featuring a manual gear wheel for effortless adjustments and safety-enhanced edges.
Cons:
- Manual operation might not suit users looking for automated solutions or features.
- Limited stroke length of 20mm may restrict applications requiring longer travel distances.
- Requires physical effort for adjustments, which might be challenging for some users in prolonged use scenarios.
60mm Fine Tuning Optical Sliding Stage (RS60-L)
The 60mm Fine Tuning Optical Sliding Stage (RS60-L) stands out as an ideal choice for professionals in fields like optical measurement and testing equipment. Its aluminum alloy construction and black anodized surface guarantee durability against scratches and drops. With a precision of 0.01mm, you’ll enjoy smooth movement and stable performance for various applications, including production machinery and optical experiments. The micrometer driving method supports a load capacity of 29.4N, allowing for 360-degree coarse adjustments and ±5 degrees of fine tuning. If you have questions, customer service is just an email away, with quick responses within 24 hours.
Best For: Professionals in optical measurement and testing equipment looking for precise and durable positioning solutions.
Pros:
- High precision of 0.01mm ensures accurate measurements and adjustments.
- Durable construction from aluminum alloy with a scratch-resistant black anodized surface.
- Versatile adjustments with 360-degree coarse and ±5 degrees fine tuning capabilities.
Cons:
- Manual operation may not be suitable for users seeking automated solutions.
- Load capacity of 29.4N may limit use with heavier equipment.
- Potential learning curve for new users unfamiliar with micrometer driving methods.
Factors to Consider When Choosing Precision Linear Stages
When you’re selecting precision linear stages, you’ll want to contemplate several key factors. Think about your load capacity needs, the required stroke length, and the material durability for your specific application. Precision and accuracy levels will also play an essential role in ensuring ideal performance.
Load Capacity Requirements
Choosing the right load capacity for a linear stage is vital, as mismatching it with the weight of your equipment can lead to serious issues. Typically, these stages can handle loads from a few kilograms to over 10 kg, depending on the model. It’s important to verify the stage’s load capacity aligns with your equipment’s weight to prevent mechanical failure. Overloading can decrease accuracy, increase wear, and even damage the stage. Many models come with safety factors included in their ratings, offering reliable performance under specified conditions. Don’t forget to take into account both static and dynamic load requirements, as movement can introduce additional stresses that might affect performance. Choose wisely to maintain your system’s integrity and functionality.
Stroke Length Considerations
Selecting the right stroke length for your precision linear stage is essential, as it defines how far the stage can travel to meet your application’s needs. Stroke lengths typically range from a few millimeters to several hundred millimeters, so it’s vital to choose one that fits your specific requirements. A longer stroke length offers versatility but can complicate the design and increase the stage’s size. Additionally, consider the load capacity; longer strokes may compromise stability and rigidity under load. If your application requires fine-tuning within a limited range, shorter stroke lengths can provide higher precision and better control. Balancing these factors will help you select the ideal stroke length for your precision linear stage.
Material Durability Factors
Understanding the material durability factors is key to guaranteeing your precision linear stage performs reliably over time. High-strength aluminum alloy is often the go-to choice due to its durability and lightweight characteristics, making it suitable for various applications. A black anodized finish enhances wear resistance and prevents corrosion, extending the lifespan of your stage. Look for sturdy construction with precise machining, as this guarantees stable performance and consistent movement during operation. Additionally, materials like stainless steel for screws and guide rods boost load-bearing capacity and reliability under demanding conditions. By selecting quality materials, you not only improve durability but also enhance the smoothness of movement, which is crucial for applications requiring exact positioning.
Precision and Accuracy Levels
When evaluating precision linear stages, it is essential to take into account their precision and accuracy levels, as these factors directly impact your application’s effectiveness. Look for stages that offer accuracy as fine as 0.01 mm or better, ensuring precise positioning. Consider the movement capabilities, such as travel ranges of ±6.5 mm for XY axes and up to 10 mm for Z axes, to match your specific needs. Cross roller guides can enhance stability and reduce friction, resulting in smoother motion. Don’t overlook load capacity; some stages support loads up to 10 kg or more, depending on their design. Finally, materials like high-strength aluminum alloy contribute to durability and long-term performance, making them ideal for precision tasks.
Application Suitability
Precision linear stages must align with your specific application requirements to maximize effectiveness. If you’re working on tasks like optical measurements, look for stages with a minimum scale of 0.01 mm and an accuracy of at least 0.03 mm. Confirm the load capacity matches your needs; some stages support up to 10 kg, while others handle around 3 kgf. Depending on your project, you might prefer single X or XY configurations for basic tasks, but multi-axis stages offer the flexibility needed for more complex applications. Finally, consider the durability of materials, like aluminum alloy with anodized finishes, especially if your stage will face rigorous use or harsh environments. Choosing wisely guarantees peak performance.
Movement Mechanism Types
Selecting the right movement mechanism for your precision linear stage is essential for achieving ideal performance in your application. Consider micrometer screws for fine adjustments and high accuracy in positioning. If smooth movement and enhanced load-bearing capacity are priorities, cross roller guides are a solid choice. For hands-on control, manual sliding mechanisms allow you to make adjustments without electronic components. Keep in mind that travel ranges can vary, with common specifications like ±6.5 mm for XY travel and up to 10 mm for Z travel. If your application requires three-dimensional positioning, look for stages that incorporate multiple axes for fine-tuning capabilities, making them ideal for tasks such as optical alignment and precision measurements.
