When it comes to precision engineering, having the right micro positioning stage can make all the difference. You need equipment that guarantees accuracy and stability in your experiments. This list of the top 10 micro positioning stages highlights models that excel in various applications. Each option has unique features tailored to specific needs. Curious about which ones stand out and why they might be the perfect fit for your projects?
Manual Linear Stage Micro Positioning Stage with 40x40mm Table
If you’re in the market for a reliable micro positioning solution, the Manual Linear Stage with a 40x40mm table is an excellent choice for precision engineering applications. This stage enables motion in both the X and Z axes, allowing for easy manual adjustments. You’ll find it particularly useful in capacitive touch screen production, optical instruments, and equipment fixtures. Its lightweight, compact design guarantees simple installation, while the large table size offers flexibility in processing. Constructed from premium aluminum alloy, this stage assures long-term durability, making it a smart investment for your precision positioning needs.
Best For: Professionals and hobbyists in engineering and optical fields seeking precise manual positioning solutions.
Pros:
- Versatile Motion: Allows for movement in both X and Z axes for flexible positioning.
- Compact Design: Lightweight and easy to install, suitable for various setups.
- Durable Construction: Made from premium aluminum alloy for long-lasting use.
Cons:
- Manual Operation: Requires manual adjustments, which may not be suitable for high-speed applications.
- Limited Table Size: The 40x40mm table may not accommodate larger equipment or tools.
- No Motorization: Lacks automated features for users seeking advanced positioning systems.
3 Axis Precision Positioning Table for Optical Lab
The 3 Axis Precision Positioning Table is an essential tool for professionals in optical labs seeking unparalleled accuracy in their experiments and processing tasks. Constructed from durable aluminum alloy, it boasts high load capacity and strength, ensuring a smooth operation that enhances your work quality. With multi-directional angle adjustments, you can easily position your equipment for various tasks, making it incredibly versatile. Plus, its liftable feature allows for a minimum height of 5.70 inches when retracted, making storage and transport a breeze. Whether for 3D marking machines or other experiments, this platform meets all your positioning needs.
Best For: Professionals in optical labs and those requiring precise positioning for experiments and processing tasks.
Pros:
- High durability: Constructed from strong aluminum alloy, ensuring long-lasting use.
- Versatile positioning: Multi-directional angle adjustments allow for flexible equipment placement.
- Portable design: The liftable feature enables easy storage and transportation with a minimum height of 5.70 inches.
Cons:
- Weight limit: May have a maximum load capacity that could limit heavier equipment use.
- Cost: High-quality materials and features may lead to a higher price point compared to basic models.
- Setup complexity: Initial setup might require more time and adjustments for optimal performance.
Magnetic Probe Holder with XYZ Axis Manual Micro-Positioning Stage
For precision engineers and researchers conducting optical experiments, the Magnetic Probe Holder with XYZ Axis Manual Micro-Positioning Stage stands out with its exceptional 0.005mm precision. This stage features a three-axis manual fine adjustment mechanism, allowing you to control movements smoothly with its precision lead screw. The V-type guide rails enhance stability, ensuring your experiments remain undisturbed. Plus, the strong magnetic base secures mounting on various surfaces. Its compact and lightweight design adds versatility, making it ideal for precise positioning tasks. You’ll find this stage invaluable for achieving the accuracy needed in your optical projects.
Best For: Precision engineers and researchers conducting optical experiments requiring high accuracy and stability.
Pros:
- High precision with 0.005mm accuracy for meticulous positioning.
- Stable design featuring V-type guide rails and a strong magnetic base for secure mounting.
- Compact and lightweight, making it versatile for various experimental setups.
Cons:
- Manual adjustment may require more time and effort compared to automated systems.
- Limited to XYZ axis, which might not accommodate more complex positioning needs.
- Magnetic base may not be suitable for all surfaces or environments.

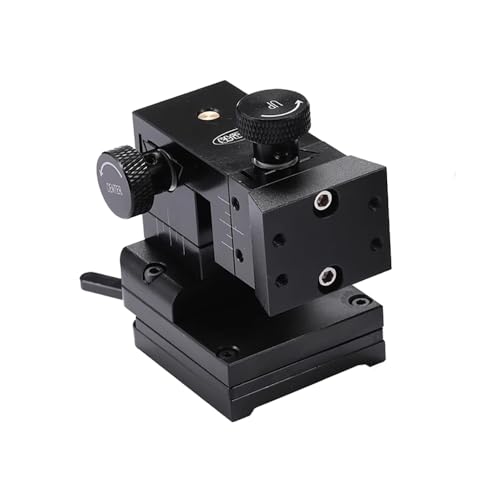

iDili Magnetic Probe Holder with Micro-Positioning Stage
Engineers and researchers engaged in optical experiments will find the iDili Magnetic Probe Holder with Micro-Positioning Stage an invaluable tool, as its three-axis manual fine adjustment system allows for pinpoint accuracy in positioning. You can easily adjust the X, Y, and Z axes within a range of 12mm and 13mm, respectively, achieving an impressive accuracy of just 5μm. The robust V-type guide rails enhance stability and minimize vibrations, ensuring reliable performance. Plus, its strong magnetic base offers secure mounting on ferrous surfaces, giving you flexibility without needing extra tools. Compact and lightweight, it’s perfect for any laboratory setup.
Best For: Engineers and researchers conducting optical experiments that require precise positioning and adjustments.
Pros:
- Highly precise with an accuracy of 5μm, ideal for delicate tasks.
- Stable performance due to V-type guide rails that minimize vibrations.
- Easy mounting on ferrous surfaces with a strong magnetic base.
Cons:
- Manual adjustment may be time-consuming compared to automated systems.
- Limited range of movement (12mm in X and Y, 13mm in Z) may not suit all applications.
- Not suitable for non-ferrous surfaces without additional mounting solutions.
X Axis Linear Stage Micro Manual Translation Stage
Precision tasks demand equipment that delivers unmatched accuracy, and the X Axis Linear Stage Micro Manual Translation Stage fits the bill perfectly. With a stroke length of 10MM, this mini sliding table excels in fine-tuning and experimentation. Its aluminum alloy construction guarantees durability while remaining lightweight and resistant to scratches and corrosion. The gear rotation handle provides smooth operation and exceptional accuracy, making it ideal for optical devices, microscopes, and testing machines. Plus, its stable structure assures long-lasting performance, making it a reliable choice for your precision engineering needs. Get ready to enhance your projects with this exceptional stage!
Best For: The X Axis Linear Stage Micro Manual Translation Stage is best for professionals and researchers in fields requiring precise adjustments, such as optical engineering and microscopy.
Pros:
- Durable Construction: Made from aluminum alloy, ensuring strength and resistance to wear and tear.
- High Precision: Gear rotation handle allows for smooth operation with exceptional accuracy in positioning.
- Versatile Applications: Suitable for a wide range of uses, including testing machines, semiconductor manufacturing, and photographic equipment.
Cons:
- Limited Stroke Length: The 10MM stroke may not be sufficient for applications requiring larger adjustments.
- Manual Operation: Requires manual effort for adjustments, which may be less efficient compared to automated systems.
- Weight Capacity Limitations: While it offers high load resistance, it may not support heavier equipment or loads as effectively as larger stages.
Magnetic Probe Holder with XYZ Axis Manual Micro-Positioning Stage
Achieving an accuracy of 0.005mm makes the Magnetic Probe Holder with XYZ Axis Manual Micro-Positioning Stage an excellent choice for researchers conducting optical experiments. Its compact and lightweight design guarantees versatility, allowing you to integrate it easily with other equipment. You’ll appreciate the long-term stability and multi-axis manual fine adjustment, which provide precise positioning for your work. Made primarily from aluminum, this holder combines durability with ease of use. Plus, if you ever need assistance, reliable after-sales support is available, promising prompt responses to your inquiries. This stage is a solid investment for precision engineering.
Best For: Researchers and engineers conducting optical experiments requiring precise micro-positioning.
Pros:
- High accuracy of 0.005mm ensures reliable results in optical applications.
- Compact and lightweight design allows for easy integration with various equipment setups.
- Long-term stability and multi-axis manual fine adjustment provide exceptional precision.
Cons:
- Manual adjustment may require more time and effort compared to automated systems.
- Limited to manual positioning, which might not be suitable for high-throughput applications.
- Primarily made from aluminum, which may not be as robust as other materials for certain environments.
80x60MM Manual X Axis Linear Stage Micro Translation Stage
For those seeking exceptional control in micro adjustments, the 80x60MM Manual X Axis Linear Stage stands out as an ideal choice. This fine-tuning precision sliding table boasts a stroke of 100MM, allowing you to achieve remarkable accuracy. Constructed from lightweight aluminum alloy, it’s both strong and durable, resisting friction, scratches, and corrosion. The gear rotation handle guarantees smooth operation and high load resistance, providing stable movement for your applications. Whether you’re working with optical equipment, measuring devices, or microscopes, this manual stage delivers excellent performance and longevity, making it a reliable tool in any precision engineering setting.
Best For: Professionals and hobbyists in precision engineering who require accurate micro adjustments in applications such as microscopy and optical equipment.
Pros:
- High precision with a 100MM stroke for fine-tuning adjustments.
- Durable construction with aluminum alloy, ensuring resistance to scratches, friction, and corrosion.
- Smooth operation facilitated by a gear rotation handle, providing stable and high-load performance.
Cons:
- Manual operation may require more effort compared to automated stages.
- Limited stroke length of 100MM might not suit all applications.
- Weight may be a concern for portable setups, despite being lightweight.
Precision Electric Z-Axis Lifting Stage with Stepper Motor Control
If you’re looking for a reliable solution for micro-positioning tasks in precision engineering, the Precision Electric Z-Axis Lifting Stage with stepper motor control stands out. With an 8mm travel range and a high-quality ball screw mechanism, it minimizes backlash for precise adjustments. You’ll appreciate its impressive linear motion accuracy, boasting a straightness of ≤3μm. Constructed from robust stainless steel, this stage guarantees durability and consistent performance. Its compact 60x60mm platform allows for easy integration into various setups, while compatibility with standard stepper motor drivers offers you flexible control options to tailor the stage to your specific needs.
Best For: Engineers and researchers requiring precise micro-positioning solutions in compact setups.
Pros:
- High linear motion accuracy with a straightness of ≤3μm for reliable adjustments.
- Robust stainless steel construction ensures durability and long-term performance.
- Compact 60x60mm design allows for easy integration into various applications.
Cons:
- Limited travel range of 8mm may not be sufficient for all applications.
- Requires compatible stepper motor drivers for full functionality.
- Initial setup may be complex for users unfamiliar with stepper motor systems.
X-Axes Linear Stage Fine-Tuning Positioning System
The X-Axes Linear Stage Fine-Tuning Positioning System stands out for engineers and technicians who demand exceptional accuracy in their projects. This industrial system features a fine-tuning sliding platform, allowing for precise micro-positioning. Made from lightweight yet durable aluminum alloy, it’s designed to resist friction, scratches, and corrosion. With a gear rotation handle and dovetail guide, you’ll experience smooth, stable movement and high load resistance. It’s versatile, suitable for optical equipment, measuring devices, and more. Plus, its robust structure guarantees a long service life, making it ideal for even the toughest industrial environments.
Best For: Engineers and technicians seeking high-precision solutions for micro-positioning in various industrial applications.
Pros:
- High accuracy and smooth operation due to the gear rotation handle and dovetail guide.
- Durable construction with aluminum alloy that is corrosion-resistant and drop-proof.
- Versatile applications across multiple fields, including optical equipment and semiconductor manufacturing.
Cons:
- May require additional setup time for fine-tuning and calibration.
- Limited to linear movement, which may not suit all positioning needs.
- Higher initial investment compared to basic positioning systems.
Stage 0.01mm Micro Positioning Cross Roller Guide for Laboratory Equipment
Achieving micrometer-level adjustments is essential for researchers and engineers working in precision engineering, and the Stage 0.01mm Micro Positioning Cross Roller Guide excels in this area. With a minimum scale of 0.01mm and an accuracy of 0.02mm, you’ll fine-tune your projects effortlessly. Crafted from high-density aluminum alloy, it’s built to last, ensuring consistent performance. The cross roller guide rails and electroplated surfaces guarantee smooth, frictionless motion for stable adjustments. Its enhanced load capacity of 29.4N (3kgf) supports heavier tools, and at just 658g, it integrates seamlessly into any workspace, making it both portable and versatile.
Best For: Researchers and engineers requiring precise micrometer-level adjustments in their laboratory equipment.
Pros:
- Precision: Achieves 0.01mm minimum scale and 0.02mm accuracy for fine-tuned positioning.
- Durable Construction: Made from high-density aluminum alloy with hard anodized finish for long-lasting use.
- Smooth Movement: Features cross roller guide rails and electroplated surfaces for frictionless motion and stability.
Cons:
- Weight: At 658g, it may be heavier than some users prefer for portable applications.
- Load Capacity Limit: While it supports up to 29.4N (3kgf), this may not be sufficient for very heavy equipment.
- Cost: High precision equipment can be more expensive than standard positioning tools.
Factors to Consider When Choosing Micro Positioning Stages
When choosing micro positioning stages, you should consider several key factors that directly impact performance. Think about motion capability options, material quality, and precision levels, as they all play significant roles in your project’s success. Don’t overlook load capacity and stability features, which guarantee reliability and accuracy in your applications.
Motion Capability Options
Choosing the right micro positioning stage involves considering various motion capability options that can greatly impact your precision engineering tasks. Look for stages that allow motion in multiple axes—typically X, Y, and Z—to provide versatile adjustments. Fine-tuning mechanisms can offer adjustments as small as 0.005mm, enhancing accuracy for your sensitive applications. If you prefer manual control, some designs include adjustment mechanisms that don’t rely on electrical components. For reliable and precise linear motion, consider advanced models featuring ball screw mechanisms that minimize backlash. Additionally, stages with cross roller guide rails guarantee smooth, frictionless movement, which is essential for maintaining stability during your adjustments. These features collectively improve your micro positioning experience and precision outcomes.
Material Composition Quality
While evaluating micro positioning stages, the material composition plays an important role in determining their performance and reliability. You’ll often find aluminum alloy being used, providing a lightweight yet robust structure that enhances portability. High-density aluminum alloys are particularly favored for their strength and durability, ensuring long-lasting performance even under heavy loads. Additionally, some stages come hard anodized, which increases surface hardness and wear resistance, contributing to their longevity. The choice of material also influences friction and corrosion resistance, essential for maintaining smooth operations. A well-constructed stage using quality materials can support heavier equipment without compromising stability or accuracy, making it imperative to assess material composition carefully when selecting the right stage for your needs.
Precision and Accuracy Levels
Precision and accuracy levels are essential factors to take into account in micro positioning stages, as they directly impact the outcome of your projects. Some systems offer accuracy as fine as 0.005mm, making them ideal for high-precision applications like optical experiments. Many stages employ lead screw mechanisms, which provide smooth control and enable micro-level adjustments effectively. The minimum scale for fine-tuning typically ranges from 0.01mm to 0.02mm, ensuring precise positioning in your experimental setups. Additionally, stability features like V-type guide rails enhance accuracy, reducing vibrations that could compromise performance. By focusing on these elements, you can select a micro positioning stage that meets your specific precision requirements and enhances your project’s success.
Load Capacity Considerations
When selecting a micro positioning stage, load capacity plays a vital role in ensuring both performance and reliability. You need to know the maximum weight your stage can support while maintaining precision and stability. It’s essential to choose a stage with a load capacity that exceeds the weight of your equipment to avoid mechanical failures or inaccuracies. Load capacities can range from a few kilograms to several hundred, depending on the design and application. A higher load capacity often translates to better stability and less vibration, which is key for precise adjustments. Don’t forget to take into account both static and dynamic load capacities, as they can differ and greatly impact performance during movement.
Stability Features Importance
Choosing the right micro positioning stage involves carefully considering its stability features, as they play a critical role in ensuring accurate and repeatable results. Stability features like V-type guide rails greatly reduce vibrations, allowing you to make precise adjustments during operations. A strong magnetic base secures the stage to ferrous surfaces, offering reliable stability without extra fixtures. Additionally, robust materials such as aluminum alloy enhance overall stability, enabling the stage to withstand varying loads and resist deformation over time. Consistent long-term stability is essential for high-precision applications since even minor shifts can lead to notable measurement errors. By prioritizing enhanced stability features, you’ll improve your confidence and repeatability in experiments, making them indispensable for optical testing and precision engineering tasks.
Design and Portability
While selecting micro positioning stages, design and portability are vital factors to take into account, as they directly impact your workflow and efficiency. Lightweight materials like aluminum alloys enhance portability, making installation a breeze. Compact designs are essential too, allowing for convenient storage and transport without consuming too much space. Consider adjustable features, such as liftable designs, which reduce height when not in use, making them easier to move. Even with lightweight construction, make sure the stage maintains stability for precision during operation. Versatile designs that integrate seamlessly with various equipment setups will also enhance usability, guaranteeing that you can handle different configurations without hassle. Prioritizing these design aspects will greatly improve your overall experience.
Adjustment Mechanism Types
Understanding the various adjustment mechanism types is vital for selecting the right micro positioning stage for your needs. Most stages use manual adjustments like precision lead screws, allowing for fine-tuning with resolutions as fine as 0.005mm. If you’re tackling complex setups, consider models that offer multi-axis adjustments (X, Y, and Z) for thorough control. Stability is essential, so look for features like V-type guide rails, which minimize vibrations and enhance performance. Additionally, gear rotation handles provide smooth operation and precise movement control. Don’t overlook the importance of magnetic bases or compact designs, as they facilitate secure mounting and easy integration into your existing lab setup without the hassle of extra fixtures. Choose wisely!
Application Versatility
Micro positioning stages are designed to meet a wide range of application needs, making them invaluable in fields like optical experiments, semiconductor manufacturing, and testing machines. Their ability to make fine adjustments, often down to 0.005mm or 0.01mm, allows you to cater to specific requirements across various industries. Many models offer multi-axis adjustments (X, Y, and Z), making them adaptable for complex tasks in research and development environments. Their compact and lightweight designs facilitate easy integration into existing setups, suitable for both laboratory and industrial applications. Enhanced stability features, such as V-type guide rails and robust mounting bases, guarantee reliable performance across diverse applications, giving you consistent results during operation.
